Home Plow by Meyer Hydraulic Units Parts Diagrams and Lists

13851 (13853)	HomePlow Auto Angling Hydraulic Unit
1     N/A	Base Assy.
2     N/A	Pump Assy.
3     NA	1/4 x 3/4" Dowel Pin
4     N/A	Intermediate Shaft
5     N/A	1/4-20 x 1-1/4 Socket Head Cap Screw
6     15101	Filter Screen
7     15142	Poppet Assy.
8     N/A	Street Elbow 3/8 NPT Black Pipe
9     N/A	Suction Tube
10   N/A	Return Tube
11   15143	Motor 12VDC
12   15144	Reservoir
13   15145	Hose Clamp 2-9/16 - 3-1/2
14     15067	Reservoir Breather
15   15146	S1 Cartridge Valve
16   15147	S1 Coil
17   N/A	Motor Solenoid Mounting Bracket
18   05028	Motor Solenoid
19   N/A	10-32 x 5/16" Torx Pan Head
20   05027	Motor Solenoid Ground Wire
21   05026	Power Cable 5"

------------------------------------------------------------------------------------------------------------------------------------------------------------------------

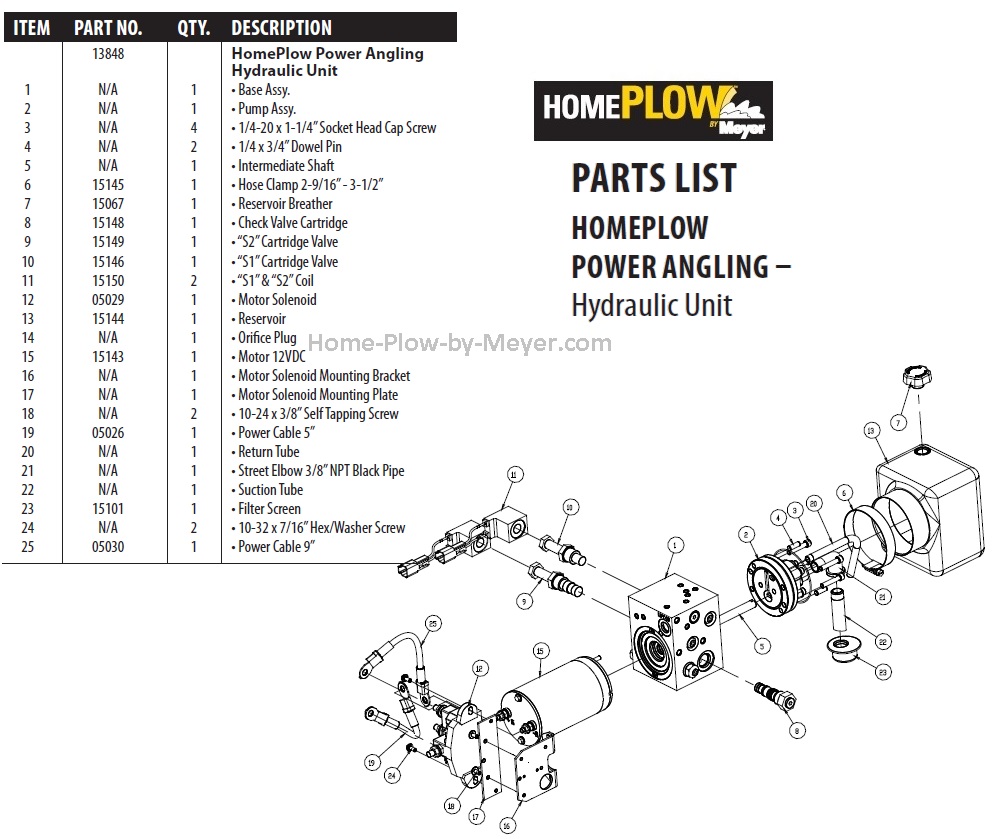

13848 (13854)	HomePlow Power Angling Hydraulic Unit
1     N/A	Base Assy.
2     N/A	Pump Assy.
3     N/A	1/4-20 x 1-1/4" Socket Head Cap Screw
4     N/A	1/4 x 3/4" Dowel Pin
5     N/A	Intermediate Shaft
6     15145	Hose Clamp 2-9/16 - 3-1/2
7     15067	Reservoir Breather
8     15148	Check Valve Cartridge
9     15149	S2 Cartridge Valve
10   15146	S1 Cartridge Valve
11   15150	S1 & S2 Coil
12   05029	Motor Solenoid
13   15144	Reservoir
14   N/A	Orifice Plug
15   15143	Motor 12VDC
16   N/A	Motor Solenoid Mounting Bracket
17   N/A	Motor Solenoid Mounting Plate
18   N/A	10-24 x 3/8" Self Tapping Screw
19   05026	Power Cable 5"
20   N/A	Return Tube
21   N/A	Street Elbow 3/8" NPT Black Pipe
22   N/A	Suction Tube
23   15101	Filter Screen
24   N/A	10-32 x 7/16" Hex/Washer Screw
25   05030	Power Cable 9"

FULL LIST OF HOME PLOW PARTS HERE

HOME PLOW WIRING PARTS LISTS
